高通qcom sdm450/msm8953平台 fingerprint指纹模组移植

阅读量：527 次

发布时间：2019-03-07

本文共 23331 字，大约阅读时间需要 77 分钟。

1：查看主板原理图获取硬件信息

系统硬件平台是sdm450/msm8953

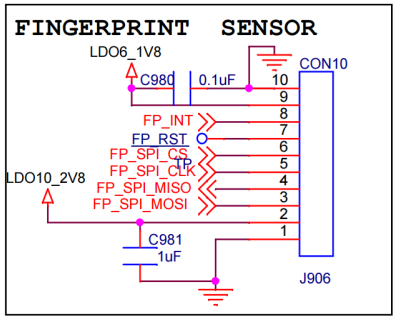

在主板原理图上可以找到指纹相关的原理图部分如下：

该IC使用两路电， LDO6 1.8v， LDO10 2.8v。

SPI通讯，追到模块上是 BLSP7 spi7 这组管脚，具体的管脚信息如下：

FP_RST 脚硬件上悬空。

FP_INIT 中断引脚，追到模块上，是gpio44。

2：驱动加载

2.1：添加驱动 code

a)配置编译选项modified:   msm-3.18/arch/arm64/configs/msmcortex-perf_defconfigmodified:   msm-3.18/arch/arm64/configs/msmcortex_defconfigmodified:   msm-3.18/drivers/input/Kconfigmodified:   msm-3.18/drivers/input/Makefile--- a/kernel/msm-3.18/arch/arm64/configs/msmcortex_defconfig+++ b/kernel/msm-3.18/arch/arm64/configs/msmcortex_defconfig+CONFIG_MICROARRAY_FINGERPRINT=y--- a/kernel/msm-3.18/arch/arm64/configs/msmcortex-perf_defconfig+++ b/kernel/msm-3.18/arch/arm64/configs/msmcortex-perf_defconfig+CONFIG_MICROARRAY_FINGERPRINT=y--- a/kernel/msm-3.18/drivers/input/Kconfig+++ b/kernel/msm-3.18/drivers/input/Kconfig+config MICROARRAY_FINGERPRINT+       tristate "MICROARRAY fingerprint IC"+       depends on SPI_MASTER+       help+         MICROARRAY fingerprint ic+#yujixuan modify+source "drivers/input/fingerprint/Kconfig"--- a/kernel/msm-3.18/drivers/input/Makefile+++ b/kernel/msm-3.18/drivers/input/Makefile+obj-$(CONFIG_MICROARRAY_FINGERPRINT)           += fingerprint/

b)添加驱动源码文件fingerprint├── Kconfig├── Makefile└── microarray    ├── ioctl_cmd.h    ├── Kconfig    ├── madev.c├── madev.h├── Makefile    ├── qualcomm-settings.c└── qualcomm-settings.h

2.1.1：配置设备树信息

在获取硬件的硬件信息中，可知该指纹使用的 spi是 spi7， msm8953平台默认情况下，spi7是被配置在TZ端安全环境中，被限制不能在AP侧使用的，

如果我们在AP侧使用spi7，需要解除限制，并且修改设备树种的 spi7 相关配置。

a)添加spi7 的设备树配置--- a/kernel/msm-3.18/arch/arm64/boot/dts/qcom/msm8953-pinctrl.dtsi+++ b/kernel/msm-3.18/arch/arm64/boot/dts/qcom/msm8953-pinctrl.dtsi@@ -1543,6 +1543,67 @@+       /* start for fingerprint spi end */+       spi7 {+           spi7_default: spi7_default {+               /* active state */+               mux {+                   /* MOSI, MISO, CLK */+                   pins = "gpio137", "gpio138", "gpio135";+                   function = "blsp_spi7";+               };+               config {+                   pins = "gpio137", "gpio138", "gpio135";+                   drive-strength = <12>; /* 12 MA */+                   bias-disable = <0>; /* No PULL */+               };+           };+           spi7_sleep: spi7_sleep {+               /* suspended state */+               mux {+                   /* MOSI, MISO, CLK */+                   pins = "gpio137", "gpio138", "gpio135";+                   function = "gpio";+               };+               config {+                   pins = "gpio137", "gpio138", "gpio135";+                   drive-strength = <2>; /* 2 MA */+                   bias-pull-down; /* PULL Down */+               };+           };+           spi7_cs0_active: cs0_active {+               /* CS */+               mux {+                   pins = "gpio136";+                   function = "blsp_spi7";+               };+               config {+                   pins = "gpio136";+                   drive-strength = <2>;+                   bias-disable = <0>;+               };+           };+           spi7_cs0_sleep: cs0_sleep {+               /* CS */+               mux {+                   pins = "gpio136";+                   function = "gpio";+               };+               config {+                   pins = "gpio136";+                   drive-strength = <2>;+                   bias-disable = <0>;+               };+           };+       };--- a/kernel/msm-3.18/arch/arm64/boot/dts/qcom/msm8953.dtsi+++ b/kernel/msm-3.18/arch/arm64/boot/dts/qcom/msm8953.dtsi   aliases {       +       spi7 = &spi_7;    };+   spi_7: spi@7af7000 { /* BLSP1 QUP7 */+       compatible = "qcom,spi-qup-v2";+       #address-cells = <1>;+       #size-cells = <0>;+       reg-names = "spi_physical", "spi_bam_physical";+       reg = <0x7af7000 0x600>,+           <0x7AC4000 0x1f000>;+       interrupt-names = "spi_irq", "spi_bam_irq";+       interrupts = <0 301 0>, <0 239 0>;+       spi-max-frequency = <19200000>;+       pinctrl-names = "spi_default", "spi_sleep";+       pinctrl-0 = <&spi7_default &spi7_cs0_active>;+       pinctrl-1 = <&spi7_sleep &spi7_cs0_sleep>;+       clocks = <&clock_gcc clk_gcc_blsp2_ahb_clk>,+           <&clock_gcc clk_gcc_blsp2_qup3_spi_apps_clk>;+       clock-names = "iface_clk", "core_clk";+       qcom,infinite-mode = <0>;+       qcom,use-bam;+       qcom,use-pinctrl;+       qcom,ver-reg-exists;+       qcom,bam-consumer-pipe-index = <8>;+       qcom,bam-producer-pipe-index = <9>;+       qcom,master-id = <84>;+       status = "disabled";+   };

b)添加改指纹驱动设备树节点 如果是REE环境 spi在AP端控制，配置如下：--- a/kernel/msm-3.18/arch/arm64/boot/dts/qcom/msm8953.dtsi+++ b/kernel/msm-3.18/arch/arm64/boot/dts/qcom/msm8953.dtsi+ +&spi_7 {+   status = "ok";+   microarray_fp@0 {+       status = "ok";+       compatible = "microarray,fingerprint";+       reg = <0x0>;+       spi-max-frequency = <4800000>;+       vcc_io = <&pm8953_l6>;+       microarray,gpio_reset = <&tlmm 20 0>;+       microarray,gpio_irq = <&tlmm 44 0>;+       microarray,gpio_pwr = <&tlmm 97 0>;+   };+};另外，需要在 TZ中解除对spi7的使用限制。--- a/TZ.BF.4.0.5/trustzone_images/core/buses/qup_accesscontrol/bear/config/QUPAC_8953_Access.xml+++ b/TZ.BF.4.0.5/trustzone_images/core/buses/qup_accesscontrol/bear/config/QUPAC_8953_Access.xml@@ -149,7 +149,7 @@

         1


       135, 136, 137, 138, end


       15, end
   -

         AC_TZ
   +

         AC_HLOS

如果是TEE环境 spi在TZ端控制，AP侧便可以不添加SPI7相关的配置，直接在soc下配置。+&soc {+   microarray_fp{+                status = "ok";+                compatible = "microarray,fingerprint";+                spi-max-frequency = <4800000>;+                //microarray,gpio_reset = <&tlmm 2 0>;+                microarray,gpio_irq = <&tlmm 44 0>;+                microarray,gpio_pwr = <&tlmm 97 0>;+			   avdd-supply = <&pm8953_l10>;+    		   vdd-supply = <&pm8953_l6>;+            };+}

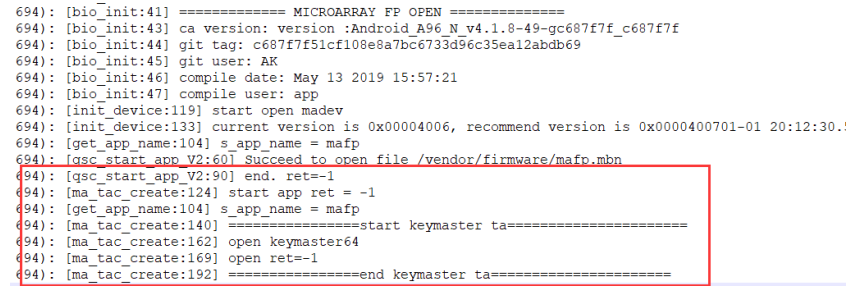

c)修改驱动，打开log开关，观察开机log，查找设备节点通过阅读供应商提供的驱动源码，该驱动的主要目的是配置gpio，创建设备，通过上层iotcl读写，检测中断，收发信息，详细内容这里不做讨论，主要关注的是发现无上电内容， 驱动直接在 init过程中加载，通过of_find_compatible_node接口直接 获取设备树的填充信息。所以需要我们 在设备树里添加 	avdd-supply = <&pm8953_l10>;     vdd-supply = <&pm8953_l6>;创建device结构体，将 device_node 传入device，然后使用regulator_get，regulator_enable来上电。成功加载后的log 如下：：msm8953_64:/ # dmesg | grep MAFP[    7.924438] MAFP_mas_init: debug log! start![    8.063001] MAFP_mas_do_some_for_probe: Get the regulator for vdd_l6 sucessfully.[    8.081571] MAFP_mas_do_some_for_probe: Get the regulator for avdd_l10 sucessfully.[    8.100764] MAFP_mas_probe: debug log! end!msm8953_64:/dev # ls -l madev0crw-rw-rw- 1 system system 231,   0 1970-01-01 00:28 madev0指纹的初始化是在tz端spi通信，读取id。基本ok后 通过ioctl控制会在驱动中注册相关中断。如果驱动中已经成功注册了中断，指纹基本上是ok的，查询到的中断应如下。msm8953_64:/ # cat proc/interrupts       CPU0     CPU1   CPU2  CPU3  CPU4  CPU5  CPU6  CPU7 51:   156        0     0      0     0     0      0     0    msmgpio  44 qcom,finger_print-eint在TEE环环境中的指纹，AP侧不做spi通信

3：添加库及权限修改

3.1：添加fingerprintd,拷贝库文件

这里直接将编译好的ta 固件放到源码下，将其编译到system.img中，具体的路径要根据上层服务调用的库中open调用的具体路径来决定。具体ta库文件的编译，后面再介绍。

diff --git a/device/qcom/msm8953_64/msm8953_64.mk b/device/qcom/msm8953_64/msm8953_64.mkindex ae2d3bb..ee36498 100755--- a/device/qcom/msm8953_64/msm8953_64.mk+++ b/device/qcom/msm8953_64/msm8953_64.mk@@ -102,6 +102,28 @@ PRODUCT_PACKAGES += \ +#fingerprint+PRODUCT_PACKAGES += \+    fingerprintd \++PRODUCT_COPY_FILES += device/qcom/msm8953_64/mafp/fingerprint.default.so:/system/lib64/hw/fingerprint.default.so+PRODUCT_COPY_FILES += device/qcom/msm8953_64/mafp/libfprint-x64.so:/system/lib64/libfprint-x64.so+PRODUCT_COPY_FILES += \+                device/qcom/msm8953_64/mafp/firmware/mafp.b00:/system/etc/firmware/mafp.b00     \+                device/qcom/msm8953_64/mafp/firmware/mafp.b01:/system/etc/firmware/mafp.b01     \+                device/qcom/msm8953_64/mafp/firmware/mafp.b02:/system/etc/firmware/mafp.b02     \+                device/qcom/msm8953_64/mafp/firmware/mafp.b03:/system/etc/firmware/mafp.b03     \+                device/qcom/msm8953_64/mafp/firmware/mafp.b04:/system/etc/firmware/mafp.b04     \+                device/qcom/msm8953_64/mafp/firmware/mafp.b05:/system/etc/firmware/mafp.b05     \+                device/qcom/msm8953_64/mafp/firmware/mafp.b06:/system/etc/firmware/mafp.b06     \+                device/qcom/msm8953_64/mafp/firmware/mafp.mbn:/system/etc/firmware/mafp.mbn     \+                device/qcom/msm8953_64/mafp/firmware/mafp.mdt:/system/etc/firmware/mafp.mdt     \          frameworks/native/data/etc/android.hardware.fingerprint.xml:system/etc/permissions/android.hardware.fingerprint.xml

3.2：Selinux权限相关的修改

在调试指纹的时候，会遇到很多的selinux报错，举一个例子如下：

01-01 22:47:08.185   697   697 E QSEECOMAPI: Error::Failed to open /dev/qseecom device01-01 22:47:08.185   697   697 D MICROARRAY: [qsc_start_app_V2:90] end. ret=-101-01 22:47:08.185   697   697 E MICROARRAY: [ma_tac_create:124] start app ret = -101-01 22:47:08.185   697   697 D MICROARRAY: [get_app_name:104] s_app_name = mafp01-01 22:47:08.185   697   697 D QSEECOMAPI: QSEECom_get_handle sb_length = 0x5800001-01 22:47:08.179   697   697 W fingerprintd: type=1400 audit(0.0:14): avc: denied { read write } for name="qseecom" dev="tmpfs" info=5621 scontext=u:r:fingerprintd:s0 tcontext=u:object_r:tee_device:s0 tclass=chr_file permissive=0

本着缺什么补什么的原则，以及项目修改的经验，添加一个指纹需要修改的权限大致如下：

--- a/device/qcom/sepolicy/common/device.te+++ b/device/qcom/sepolicy/common/device.te++#add by microarray+type microarray_finger_device_type, dev_type;--- a/device/qcom/sepolicy/common/file.te+++ b/device/qcom/sepolicy/common/file.te+#add by microarray gur+type ma_data_file, file_type, data_file_type;--- a/device/qcom/sepolicy/common/file_contexts+++ b/device/qcom/sepolicy/common/file_contexts@@ -388,3 +388,24 @@+# Devices+/dev/madev0        u:object_r:microarray_finger_device_type:s0+/data/system/ma_fingerprint(/.*)?  u:object_r:ma_data_file:s0--- a/device/qcom/sepolicy/common/fingerprintd.te+++ b/device/qcom/sepolicy/common/fingerprintd.te+allow fingerprintd microarray_finger_device_type:chr_file {create_file_perms};+allow fingerprintd ma_data_file:file create_file_perms;+allow fingerprintd ma_data_file:dir create_dir_perms;--- a/device/qcom/sepolicy/common/init.te+++ b/device/qcom/sepolicy/common/init.te+allow init ma_data_file:dir {create_file_perms};+allow init ma_data_file:file {create_file_perms};--- a/device/qcom/sepolicy/common/platform_app.te+++ b/device/qcom/sepolicy/common/platform_app.te+allow platform_app microarray_finger_device_type:chr_file {create_file_perms};--- a/device/qcom/sepolicy/common/system_app.te+++ b/device/qcom/sepolicy/common/system_app.te+allow system_app  microarray_finger_device_type:chr_file {create_file_perms};

修改开机启动相关服务

--- a/device/qcom/common/rootdir/etc/init.qcom.rc+++ b/device/qcom/common/rootdir/etc/init.qcom.rc+    #add by microarray gur+    mkdir /data/system/ma_fingerprint 0777 system system@@ -990,6 +993,14 @@ service usb_uicc_enable /system/bin/sh /system/etc/init.qcom.uicc.sh     disabled     oneshot+#fingerprint+service fingerprintd /system/bin/fingerprintd+    class late_start+    user system

修改设备节点文件权限

--- a/device/qcom/common/rootdir/etc/ueventd.qcom.rc+++ b/device/qcom/common/rootdir/etc/ueventd.qcom.rc@@ -125,6 +125,10 @@+/dev/madev0                      0666   system    system

4：TZ侧安全环境的搭建

4.1：编译配置

4.1.1：查看TZ版本

PATH：\TZ.BF.4.0.5\trustzone_images\build\ manifest.xml





      TZ.BF.4.0.5


      TZ.BF.4.0.5-00065-M8937AAAAANAZT-1



      00065


      1


      M8937AAAAANAZT

4.1.2：QSEE SDK移植

检查编译环境是否OK配置好编译环境后，可以先编译 sampleapp ta来测试编译环境是否ok。

通过阅读BP侧的编译脚本，在TZ下的编译命令是：

else if /i "%1" == "tz" (   cd TZ.BF.4.0.5/trustzone_images/build/ms   if /i "%2" == "" (   build.cmd CHIPSET=msm8953 devcfg sampleapp    )

cd \smartmodule\code\TZ.BF.4.0.5\trustzone_images\build\ms

清除编译的内容：

build.cmd CHIPSET=msm8953 devcfg sampleapp  -c

重新编译sampleapp：

build.cmd CHIPSET=msm8953 devcfg sampleapp

编译成功，应无error提醒，编译出相关ta文件，产生如下的log，即表示SDKSDK环境OK。

=== Generating  sampleapp/A53_64/SANAANAA/smplap64.mdt...BIN D:\SC60_BP\TZ.BF.4.0.5\trustzone_images\build\ms\bin\PIL_IMAGES\SPLITBINS_SANAANAA\unsigned\smplap64.mdtBIN D:\SC60_BP\TZ.BF.4.0.5\trustzone_images\build\ms\bin\PIL_IMAGES\SPLITBINS_SANAANAA\unsigned\smplap64.b00BIN D:\SC60_BP\TZ.BF.4.0.5\trustzone_images\build\ms\bin\PIL_IMAGES\SPLITBINS_SANAANAA\unsigned\smplap64.b01BIN D:\SC60_BP\TZ.BF.4.0.5\trustzone_images\build\ms\bin\PIL_IMAGES\SPLITBINS_SANAANAA\unsigned\smplap64.b02BIN D:\SC60_BP\TZ.BF.4.0.5\trustzone_images\build\ms\bin\PIL_IMAGES\SPLITBINS_SANAANAA\unsigned\smplap64.b03BIN D:\SC60_BP\TZ.BF.4.0.5\trustzone_images\build\ms\bin\PIL_IMAGES\SPLITBINS_SANAANAA\unsigned\smplap64.b04BIN D:\SC60_BP\TZ.BF.4.0.5\trustzone_images\build\ms\bin\PIL_IMAGES\SPLITBINS_SANAANAA\unsigned\smplap64.b05BIN D:\SC60_BP\TZ.BF.4.0.5\trustzone_images\build\ms\bin\PIL_IMAGES\SPLITBINS_SANAANAA\unsigned\smplap64.b06

编译环境加载：

如果SDK编译无法通过，按照以下过程检查环境

/opt环境添加

解压并拷贝gcc-linaro-arm-linux-gnueabihf-4.8-2014.04_linux到/opt/arm

解压并拷贝gcc-linaro-aarch64-none-elf-4.9-2014.07_linux到/opt/arm

解压并拷贝Snapdragon_LLVM到/opt

/home/xxx/bin环境添加

解压并拷贝gcc-arm-none-eabi-4_8-2014q3到/home/xxx/bin

解压并拷贝gcc-linaro-6.1.1-2016.08-i686_arm-linux-gnueabihf到/home/xxx/bin

解压并拷贝arm-eabi-4.8到/home/xxx/bin

QSEE环境

解压并拷贝TZ.BF.4.0.5到/home/xxx/workspace

Python安装

将python.exe 添加到高级环境变量中。

4.1.3：QSEE中添加microarray app

添加ID:

--- a/apps/bsp/trustzone/qsapps/build/secimage.xml+++ b/apps/bsp/trustzone/qsapps/build/secimage.xml@@ -118,6 +118,12 @@+       +

    +

     0x000000000000000C
    +

     0x0000000000008888
    +
   +       --- a/core/bsp/trustzone/qsapps/build/secimage.xml+++ b/core/bsp/trustzone/qsapps/build/secimage.xml+       +

    +

     0x000000000000000C
    +

     0x0000000000008888
    +
   +

拷贝工程文件：

拷贝bsp工程文件
```
cd trustzone_images/core/bsp/trustzone/qsapps/sampleapp/build/mkdir mafpcp -r ./sampleapp/* mafp
```
修改 trustzone_images/core/bsp/trustzone/qsapps/myapp/mafp/SConscript
替换所有的sampleapp 和 SAMPLEAPP 为mafp MAFP.
掉除了 'mafp','all' 所有的 aliases

拷贝kernel工程文件

cd trustzone_images/core/kernel/libstd/buildmkdir mafpcp -r ./sampleapp/* mafp

拷贝secure libstd 工程文件

拷贝secure libstd 工程文件cd trustzone_images/core/securemsm/trustzone/qsee/mink/libstd/buildmkdir mafp

拷贝secure biometric 工程文件

cd trustzone_images/core/securemsm/trustzone/qsapps/libs/biometric/buildmkdir mafpcp -r ./sampleapp/* mafp

拷贝secure qsee 工程文件

cd trustzone_images/core/securemsm/trustzone/qsapps/libs/applib/qsee/buildmkdir mafpcp -r ./sampleapp/* mafp

拷贝secure proxy 工程文件

cd trustzone_images/core/securemsm/trustzone/qsapps/libs/applib/proxy/buildmkdir mafpcp -r ./sampleapp/* mafp

拷贝secure common_applib 工程文件

cd trustzone_images/core/securemsm/trustzone/qsapps/libs/applib/common_applib/buildmkdir mafpcp -r ./sampleapp/* mafp

加入工程文件到编译环境

在相关的编译文件中添加编译选项内容可以都在'SAMPLEAPP_IMAGE'后面添加。

修改文件trustzone_images/core/kernel/libstd/build/Sconscript，添加'MAFP_IMAGE',共两处。

--- a/core/kernel/libstd/build/SConscript+++ b/core/kernel/libstd/build/SConscript@@ -72,13 +72,13 @@ if 'LIBSTD_TEST' in env: env.AddBinaryLibrary(['TZOS_IMAGE','MONITOR_IMAGE','HYPERVISOR_IMAGE', 'CTZL_IMAGE', 'CTZL64_IMAGE', 'TZTESTEXEC_IMAGE', 'WIDEVINE_IMAGE', 'PLAYREADY_IMAGE', 'MACCHIATO_SAMPLE_IMAGE', 'FIDOSUI_IMAGE',                       'GPSAMPLE', 'GPTEST_IMAGE', 'GPTEST2', 'TTAARI1', 'TTACAPI1', 'TTACAPI2', 'TTACAPI3',  'TTACAPI4',  'TTACAPI5',  'TTACRP1',  'TTADS1',  'TTATIME1',  'TTATCF1',  'TTATCF2',  'TTATCF3',  'TTATCF4', 'TTATCF5',-                      'SAMPLEAPP_IMAGE', 'QMPSECAPP_IMAGE', 'SAMPLEAPP64_IMAGE', 'ISDBTMM_IMAGE', 'APTTESTAPP_IMAGE', 'APTCRYPTOTESTAPP_IMAGE', 'ASSURANCETEST_IMAGE', 'ASSURANCETEST64_IMAGE', 'SECURITYTEST_IMAGE','DXHDCP2_IMAGE', 'DXHDCP2DBG_IMAGE',+                      'SAMPLEAPP_IMAGE', 'MAFP_IMAGE', 'QMPSECAPP_IMAGE', 'SAMPLEAPP64_IMAGE', 'ISDBTMM_IMAGE', 'APTTESTAPP_IMAGE', 'APTCRYPTOTESTAPP_IMAGE', 'ASSURANCETEST_IMAGE', 'ASSURANCETEST64_IMAGE', 'SECURITYTEST_IMAGE','DXHDCP2_IMAGE', 'DXHDCP2DBG_IMAGE',if 'LIBSTD_TEST' in env:-   env.AddBinaryLibrary(['TZOS_IMAGE', 'HYPERVISOR_IMAGE', 'CTZL_IMAGE', 'CTZL64_IMAGE', 'TZTESTEXEC_IMAGE', 'SAMPLEAPP_IMAGE', 'SAMPLEAPP64_IMAGE', 'FINGERPRINT_IMAGE', 'FINGERPRINT64_IMAGE', 'IRIS_IMAGE', 'RETSTAPP_IMAGE',+   env.AddBinaryLibrary(['TZOS_IMAGE', 'HYPERVISOR_IMAGE', 'CTZL_IMAGE', 'CTZL64_IMAGE', 'TZTESTEXEC_IMAGE', 'SAMPLEAPP_IMAGE', 'MAFP_IMAGE', 'SAMPLEAPP64_IMAGE', 'FINGERPRINT_IMAGE', 'FINGERPRINT64_IMAGE', 'IRIS_IMAGE', 'RETSTAPP_IMAGE',

修改文件trustzone_images/core/securemsm/trustzone/qsee/mink/libstd/build/Sconscript，添加'MAFP_IMAGE',共一处。

--- a/core/securemsm/trustzone/qsee/mink/libstd/build/SConscript+++ b/core/securemsm/trustzone/qsee/mink/libstd/build/SConscript@@ -108,7 +108,7 @@ images = ['TZOS_IMAGE', 'MONITOR_IMAGE', 'HYPERVISOR_IMAGE',           'GPSAMPLE', 'GPTEST_IMAGE', 'TTAARI1', 'TTACAPI1', 'TTACAPI2', 'TTACAPI3',           'TTACAPI4',  'TTACAPI5',  'TTACRP1',  'TTADS1',  'TTATIME1',           'TTATCF1',  'TTATCF2',  'TTATCF3',  'TTATCF4',  'TTATCF5',-          'SAMPLEAPP_IMAGE', 'SMPLSERV_IMAGE', 'SMPLCERT_IMAGE',+          'SAMPLEAPP_IMAGE', 'MAFP_IMAGE', 'SMPLSERV_IMAGE', 'SMPLCERT_IMAGE',

修改文件 trustzone_images/core/securemsm/trustzone/qsapps/libs/biometric/build/Sconscript，添加MAFP_IMAGE,共一处。

--- a/core/securemsm/trustzone/qsapps/libs/biometric/build/SConscript+++ b/core/securemsm/trustzone/qsapps/libs/biometric/build/SConscript@@ -80,6 +80,7 @@ biometric_lib = '${BUILDPATH}/biometric_lib' env.AddBinaryLibrary (['SAMPLEAPP_IMAGE'],biometric_lib, [BIOMETRIC_LIB_SOURCES])+env.AddBinaryLibrary (['MAFP_IMAGE'],biometric_lib, [BIOMETRIC_LIB_SOURCES])

修改文件 trustzone_images/core/securemsm/trustzone/qsapps/libs/applib/qsee/build/Sconscript，添加MAFP_IMAGE,共两处。

--- a/core/securemsm/trustzone/qsapps/libs/applib/qsee/build/SConscript+++ b/core/securemsm/trustzone/qsapps/libs/applib/qsee/build/SConscript@@ -156,6 +156,8 @@ elif env.has_key('KEYMASTERLAT_IMAGE'):    LIB_ENTRY_SOURCES += [ '${BUILDPATH}/src/tzapp_lib_main.c',] elif env.has_key('SAMPLEAPP_IMAGE'):    LIB_ENTRY_SOURCES += [ '${BUILDPATH}/src/tzapp_lib_main.c',]+elif env.has_key('MAFP_IMAGE'):+   LIB_ENTRY_SOURCES += [ '${BUILDPATH}/src/tzapp_lib_main.c',]@@ -211,6 +213,9 @@ else: env.AddBinaryObject('SAMPLEAPP_IMAGE', IMG_ENTRY_SOURCES) env.AddBinaryLibrary('SAMPLEAPP_IMAGE', '${BUILDPATH}/tzapp_entrylib', LIB_ENTRY_SOURCES)+env.AddBinaryObject('MAFP_IMAGE', IMG_ENTRY_SOURCES)+env.AddBinaryLibrary('MAFP_IMAGE', '${BUILDPATH}/tzapp_entrylib', LIB_ENTRY_SOURCES)

修改文件 trustzone_images/core/securemsm/trustzone/qsapps/libs/applib/proxy/build/Sconscript，添加MAFP_IMAGE,共一处。

--- a/core/securemsm/trustzone/qsapps/libs/applib/proxy/build/SConscript+++ b/core/securemsm/trustzone/qsapps/libs/applib/proxy/build/SConscript@@ -118,7 +118,7 @@ env.LoadSoftwareUnits() env.AddBinaryLibrary(['KEYMASTER_IMAGE', 'KEYMASTER64_IMAGE', 'KEYMASTERLAT_IMAGE',                       'GPSAMPLE', 'GPTEST_IMAGE', 'GPTEST2', 'TTAARI1', 'TTACAPI1', 'TTACAPI2', 'TTACAPI3', 'TTACAPI4', 'TTACAPI5', 'TTACRP1', 'TTADS1', 'TTATIME1', 'TTATCF1', 'TTATCF2', 'TTATCF3',-                      'TTATCF4', 'TTATCF5', 'SAMPLEAPP_IMAGE', 'SAMPLEAPP64_IMAGE', 'ASSURANCETEST_IMAGE', 'ASSURANCETEST64_IMAGE', 'SECUREUISAMPLE_IMAGE', 'SECUREUISAMPLE64_IMAGE', 'APTTESTAPP_IMAGE', 'APTCRYPTOTESTAPP_IMAGE', 'FIDOCONFIG_IMAGE',+                      'TTATCF4', 'TTATCF5', 'SAMPLEAPP_IMAGE', 'MAFP_IMAGE', 'SAMPLEAPP64_IMAGE', 'ASSURANCETEST_IMAGE', 'ASSURANCETEST64_IMAGE', 'SECUREUISAMPLE_IMAGE', 'SECUREUISAMPLE64_IMAGE', 'APTTESTAPP_IMAGE', 'APTCRYPTOTESTAPP_IMAGE', 'FIDOCONFIG_IMAGE',

修改文件trustzone_images/core/securemsm/secrsa/build/SConscript，添加以下脚本：

--- a/core/securemsm/secrsa/build/SConscript                                                  +++ b/core/securemsm/secrsa/build/SConscript                                                  @@ -70,6 +70,11 @@ if env.has_key('WINSECAPP_IMAGE'):                                         +if env.has_key('MAFP_IMAGE'):                                                                +  env.Append(CPPPATH = "${COREBSP_ROOT}/securemsm/secrsa/env/sampleapp/inc")                 +  env.Append(CPPPATH = "${COREBSP_ROOT}/securemsm/secmath/env/sampleapp/inc")                +  env.Append(CPPPATH = "${COREBSP_ROOT}/api/securemsm/trustzone/qsee")                       +  env.Append(CPPPATH = "${COREBSP_ROOT}/api/securemsm/crypto")                                      @@ -84,6 +89,8 @@ elif env.has_key('GPTEST_IMAGE'):                                              env.Append(CCFLAGS = " -O3  ")                                                              elif env.has_key('SAMPLEAPP_IMAGE'):                                                            env.Append(CCFLAGS = " -O3  ")                                                             +elif env.has_key('MAFP_IMAGE'):                                                              +  env.Append(CCFLAGS = " -O3  ")

4.2：修改TA meory size

QSEE中的修改：

--- a/core/securemsm/trustzone/qsee/mink/oem/config/msm8953/oem_config.xml+++ b/core/securemsm/trustzone/qsee/mink/oem/config/msm8953/oem_config.xml@@ -40,10 +40,10 @@


    -      0x85B00000+      0x84a00000


    -      0x800000+      0x1900000

LK中的修改：

--- a/bootable/bootloader/lk/platform/msm8953/include/platform/iomap.h+++ b/bootable/bootloader/lk/platform/msm8953/include/platform/iomap.h@@ -221,8 +221,12 @@ #define RPMB_SND_RCV_BUF_SZ         0x1  /* QSEECOM: Secure app region notification */-#define APP_REGION_ADDR 0x85B00000-#define APP_REGION_SIZE 0x800000+#define APP_REGION_ADDR 0x84a00000+#define APP_REGION_SIZE 0x1900000

Kernel中的修改：

--- a/kernel/msm-3.18/arch/arm/boot/dts/qcom/msm8953.dtsi+++ b/kernel/msm-3.18/arch/arm/boot/dts/qcom/msm8953.dtsi@@ -34,7 +34,8 @@                other_ext_mem: other_ext_region@0 {                        compatible = "removed-dma-pool";                        no-map;-                       reg = <0x0 0x85b00000 0x0 0xd00000>;+               //      reg = <0x0 0x85b00000 0x0 0xd00000>;+                       reg = <0x0 0x84a00000 0x0 0x1E00000>;                };                 modem_mem: modem_region@0 {@@ -2084,9 +2085,10 @@                qcom,ce-opp-freq = <100000000>;        };-       qcom_seecom: qseecom@85b00000 {+       qcom_seecom: qseecom@84a00000 {                compatible = "qcom,qseecom";-               reg = <0x85b00000 0x800000>;+       //      reg = <0x85b00000 0x800000>;+               reg = <0x84a00000 0x1900000>;
